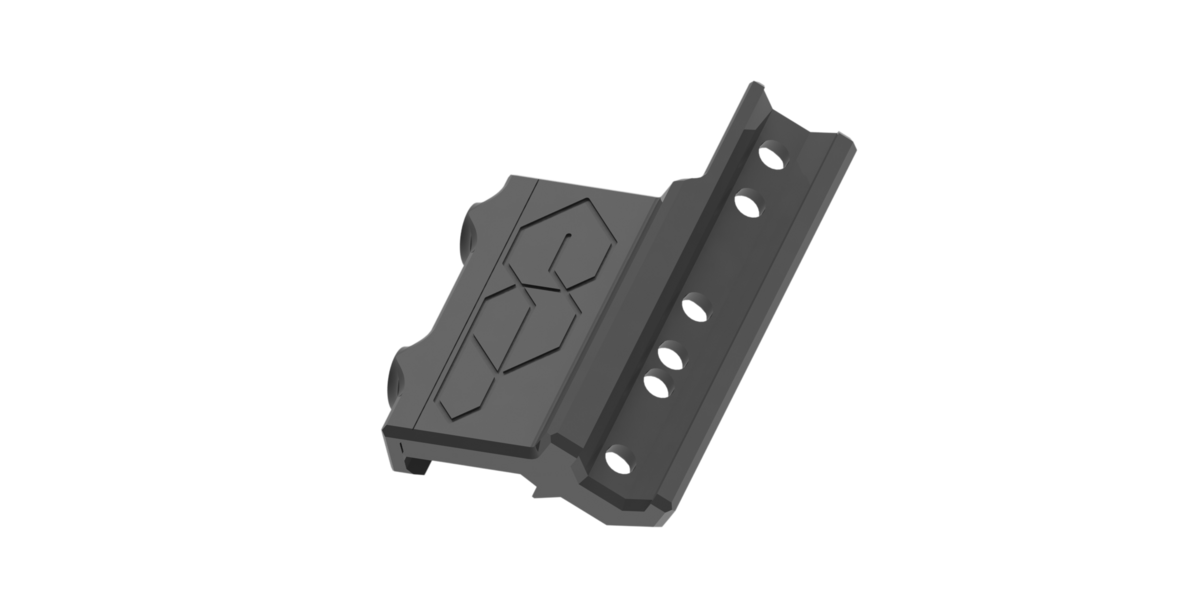

SAM
Side acog mounT

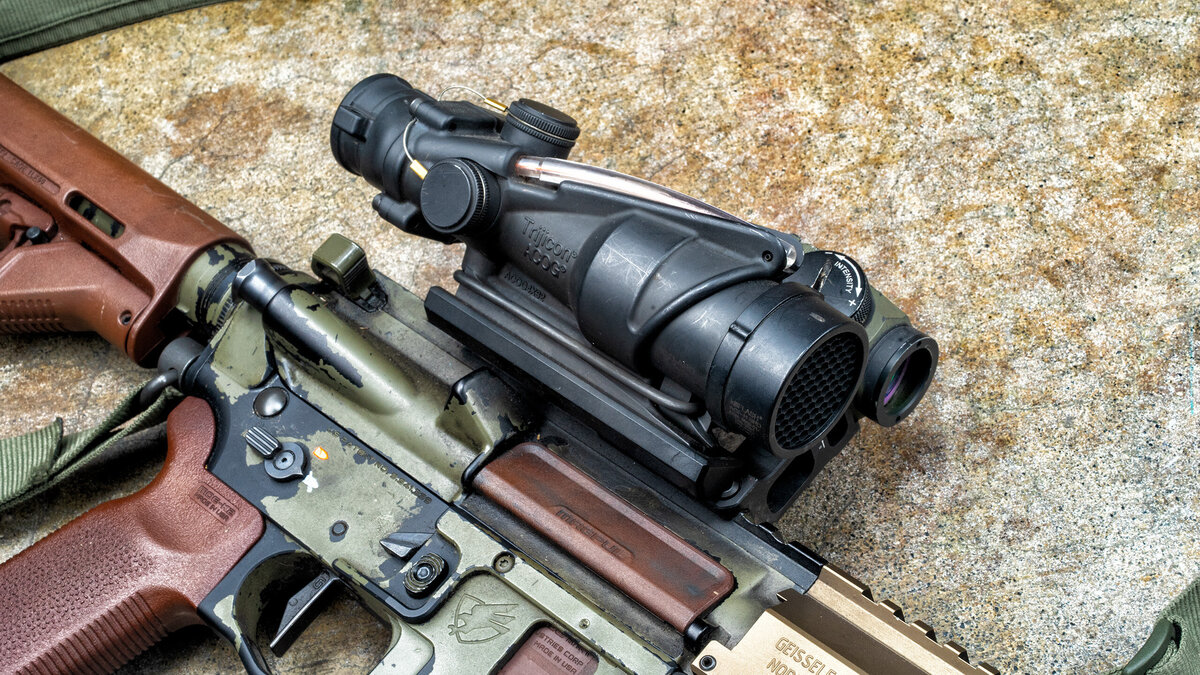

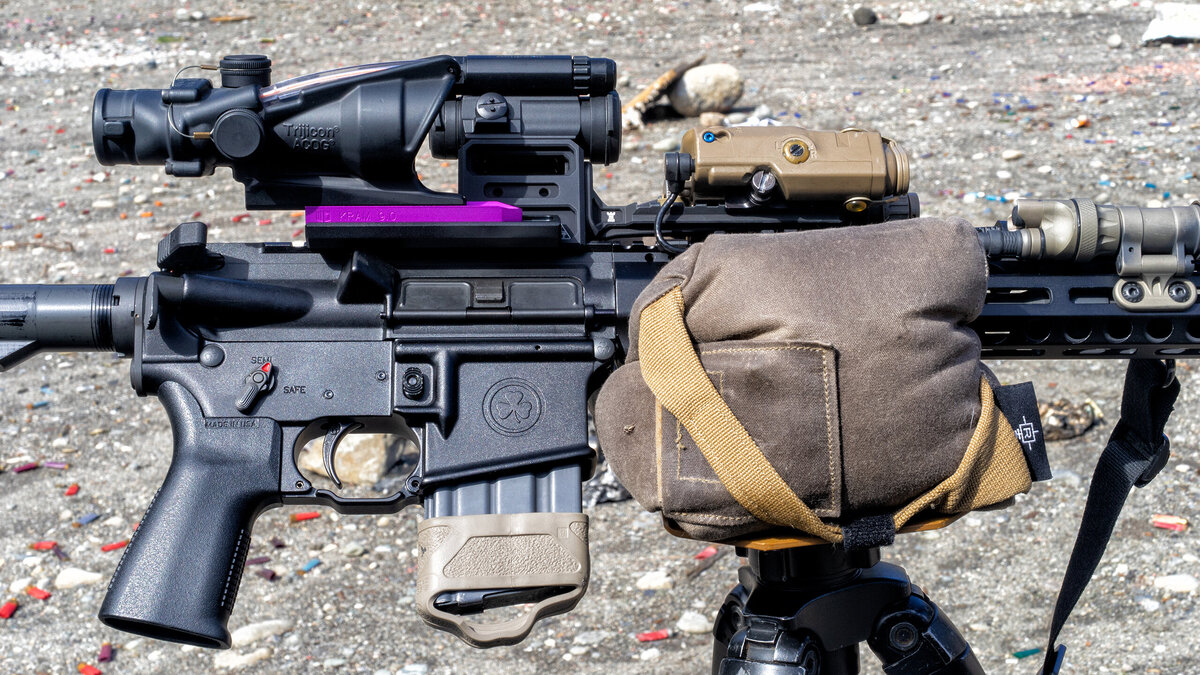

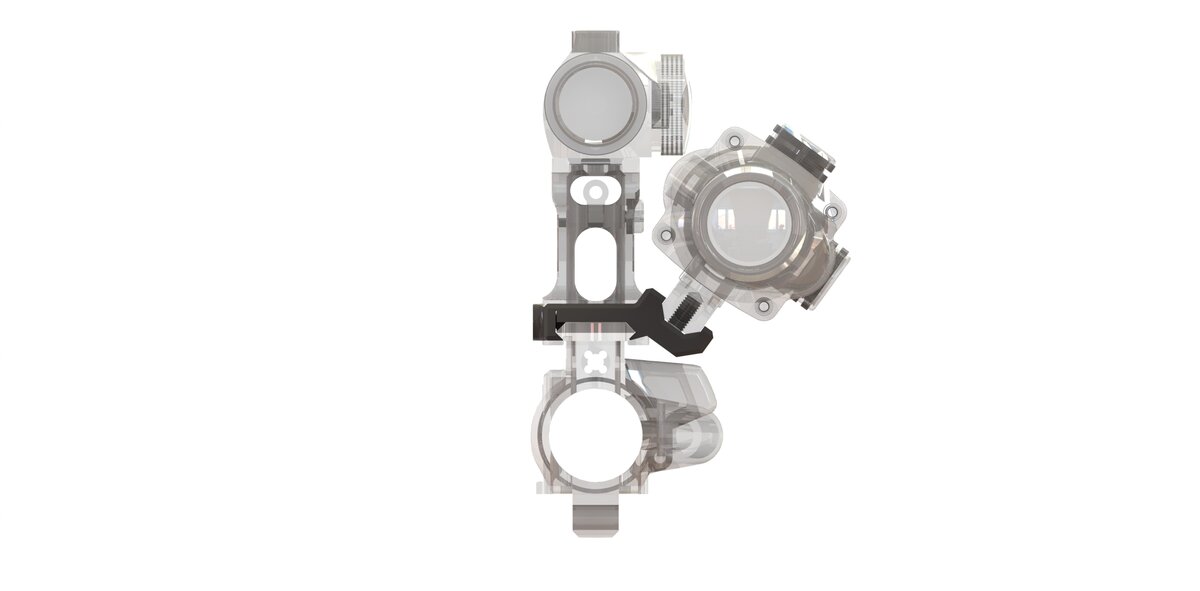

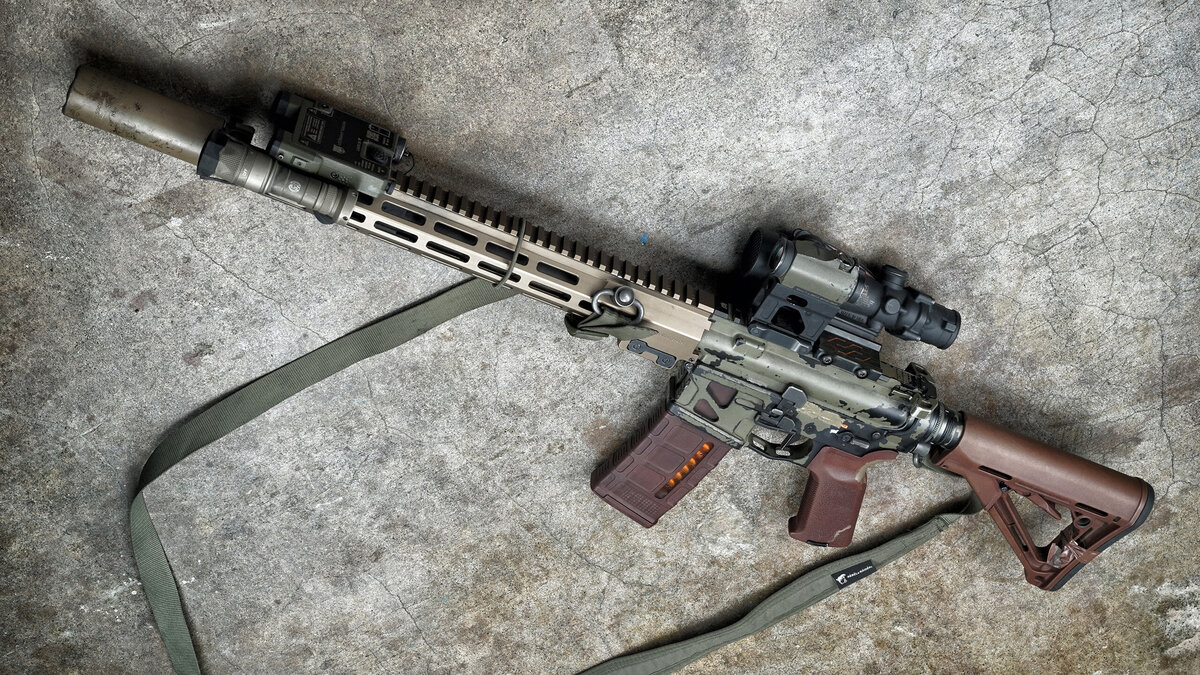

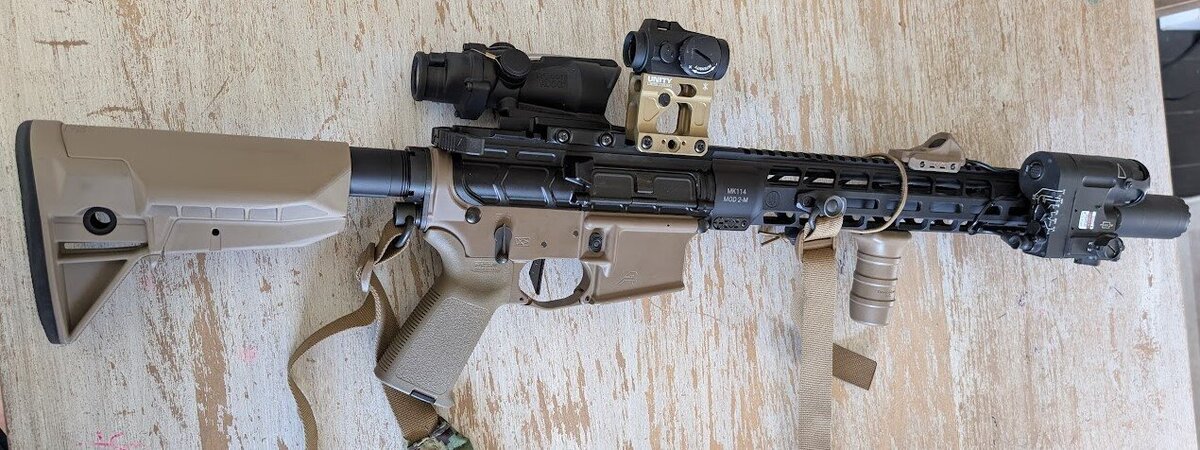

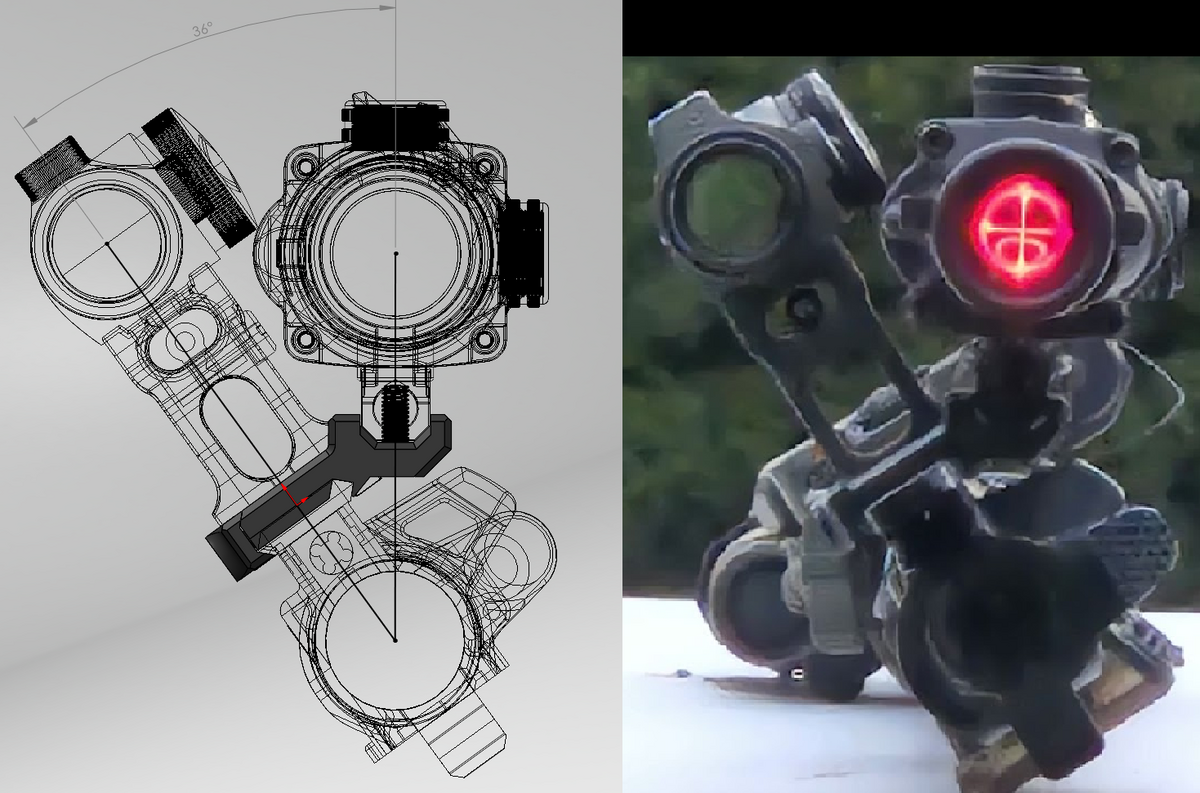

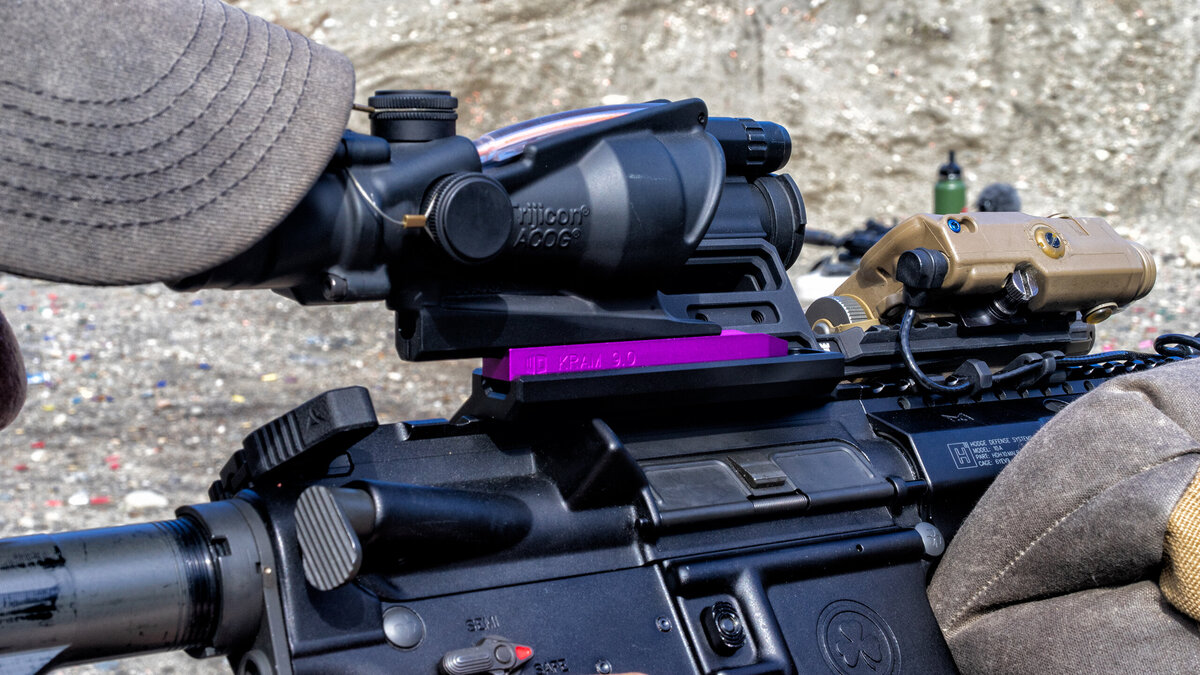

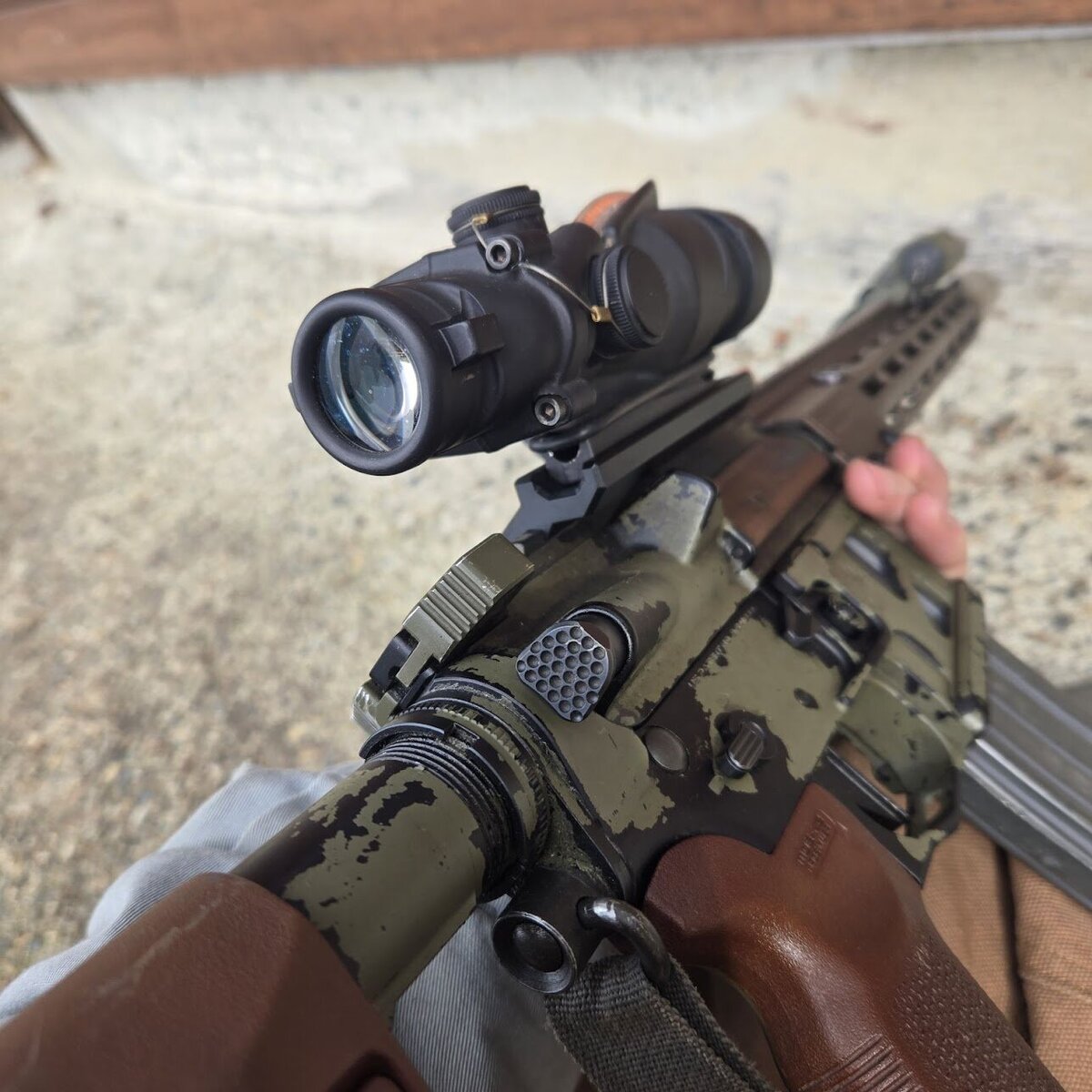

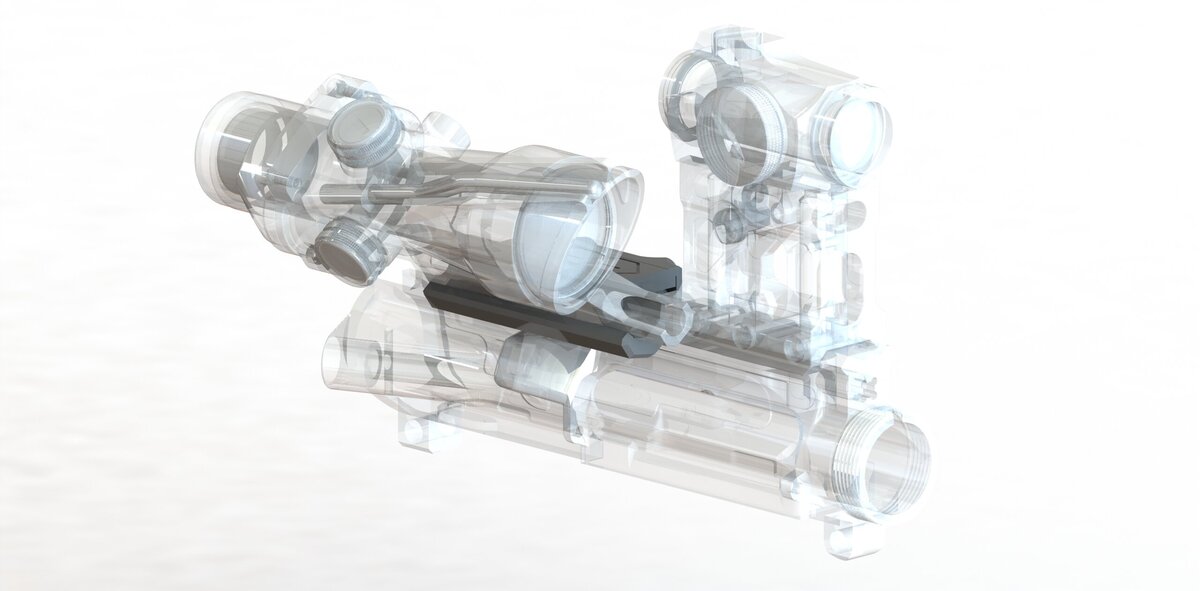

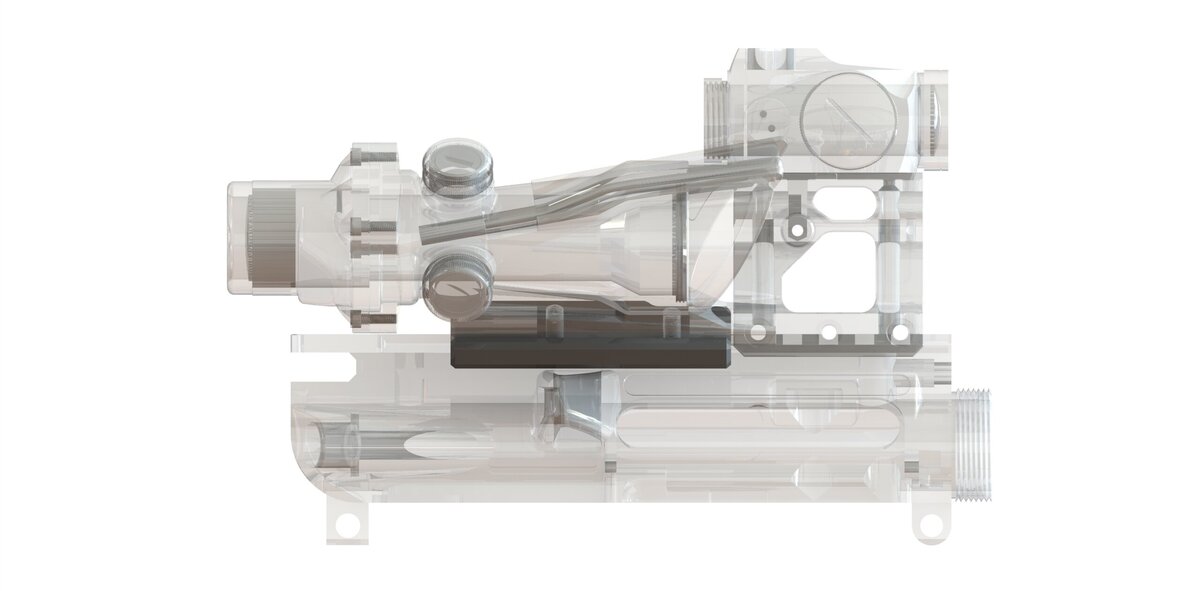

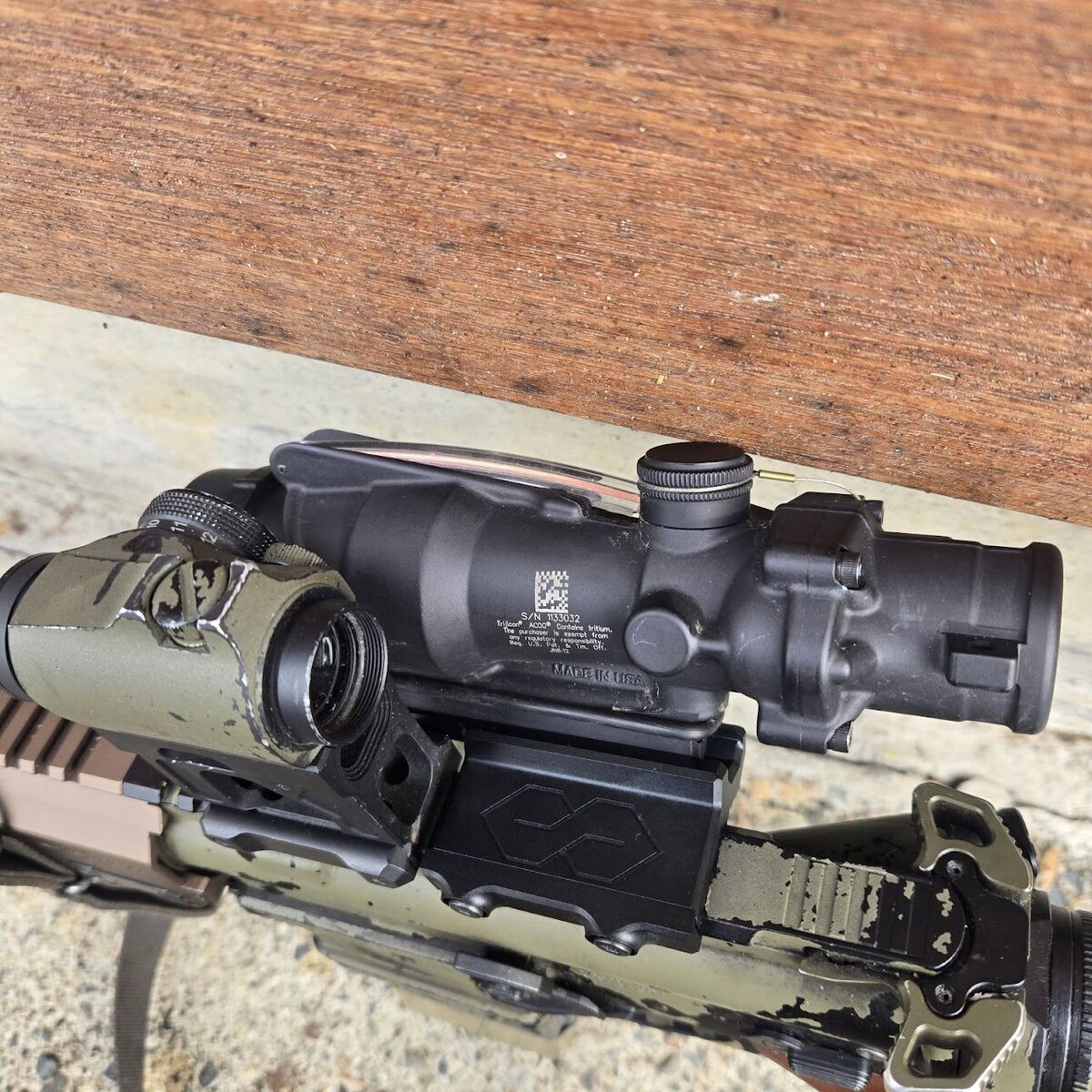

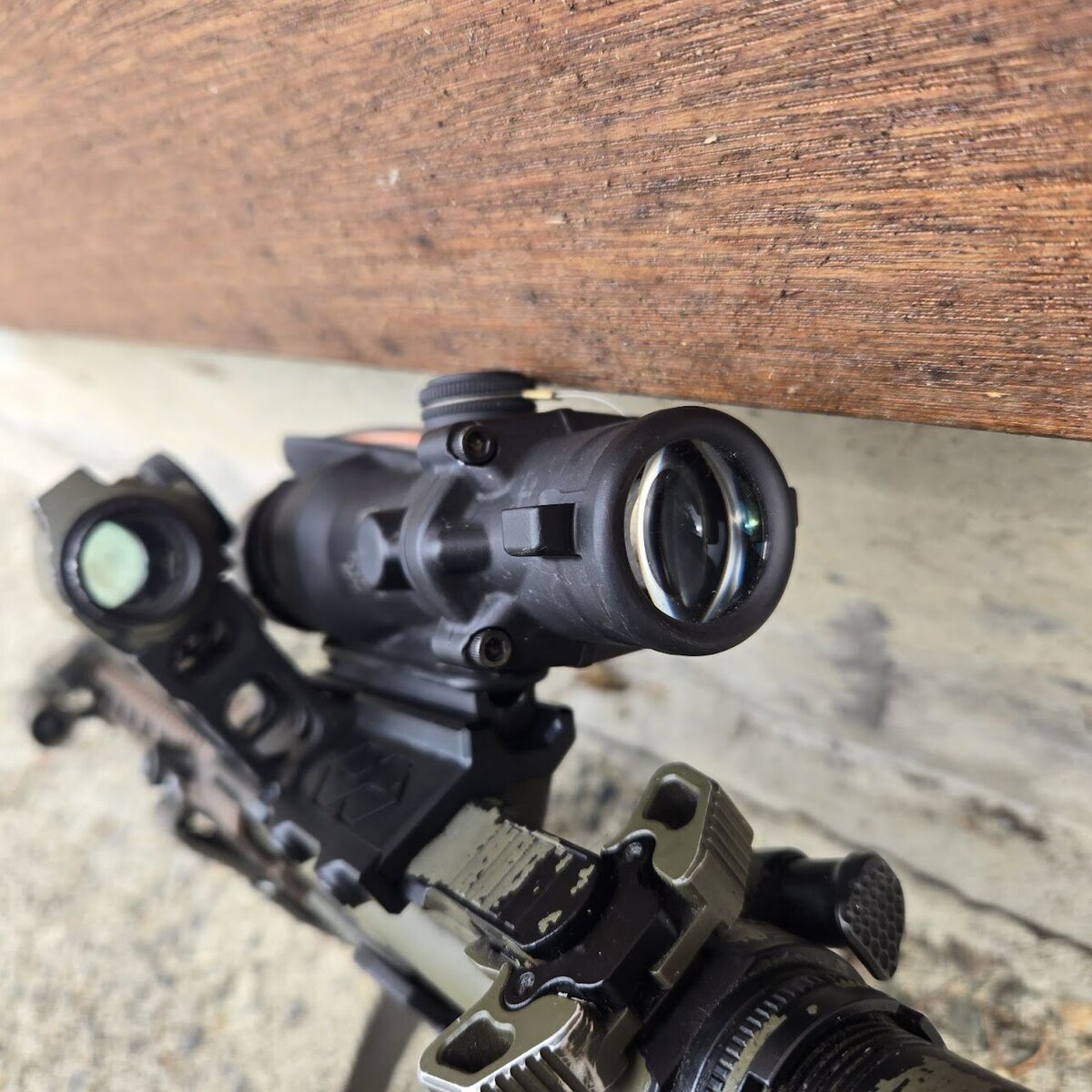

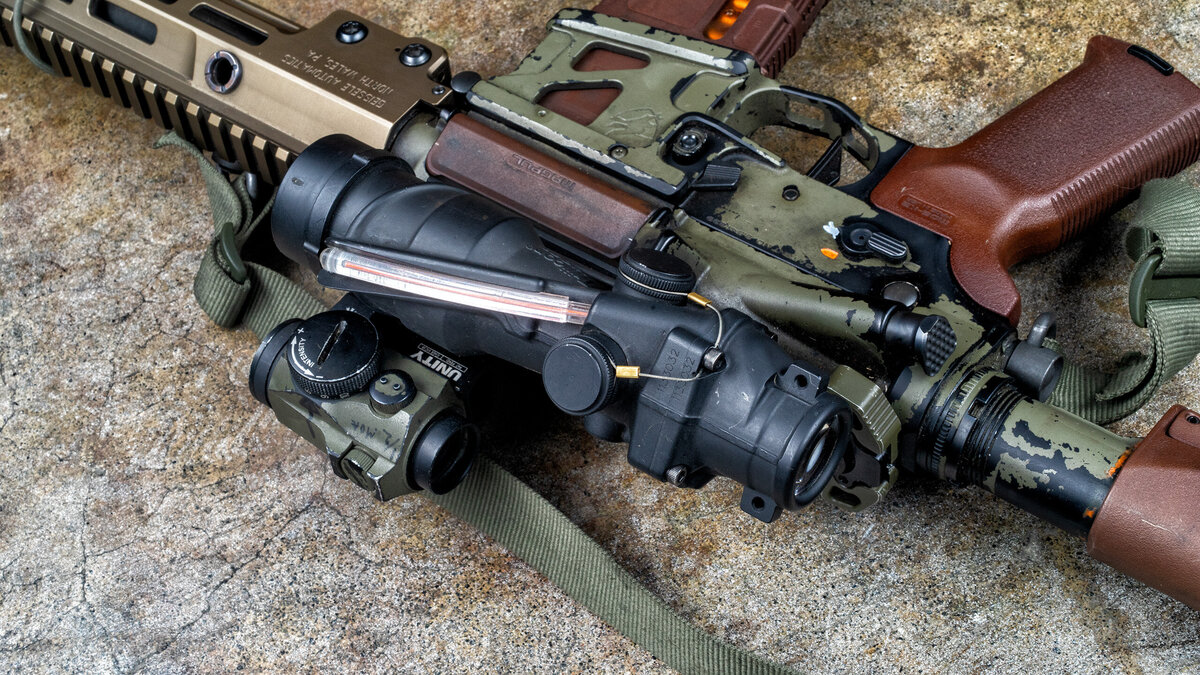

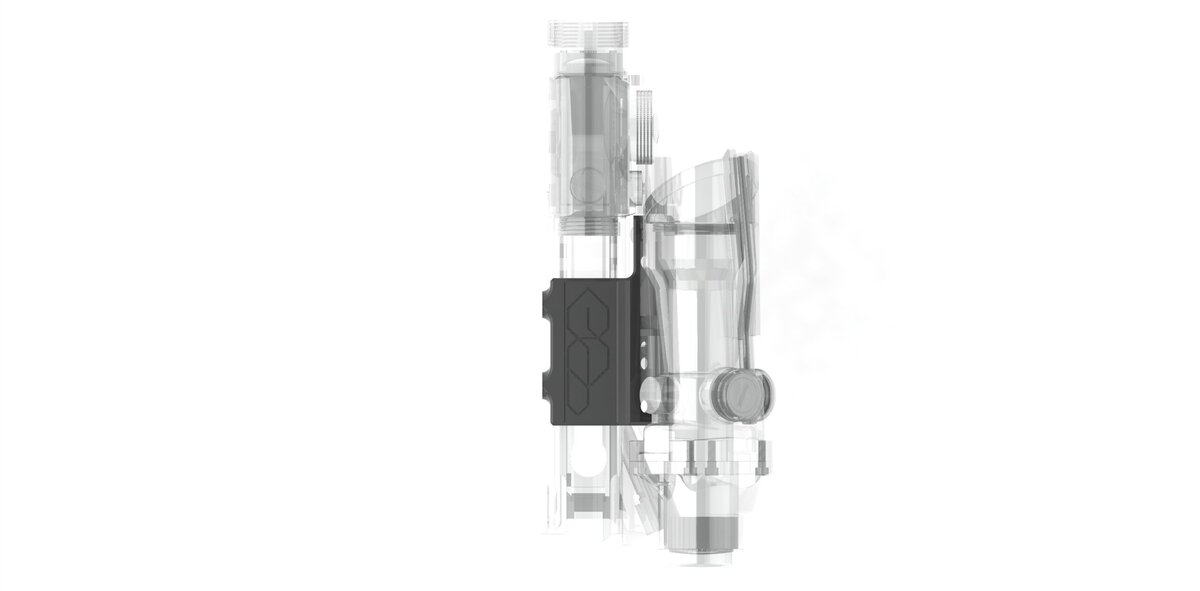

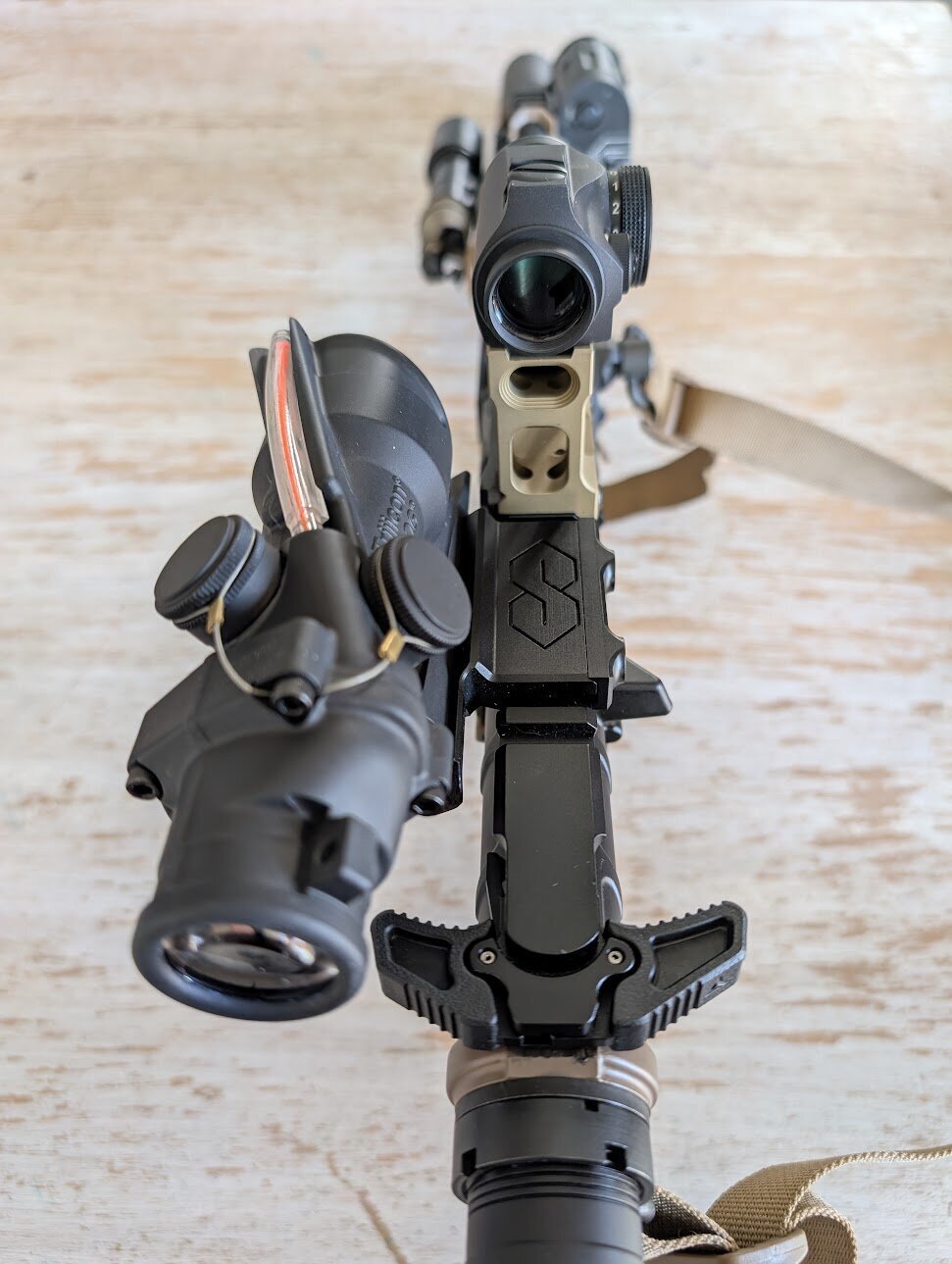

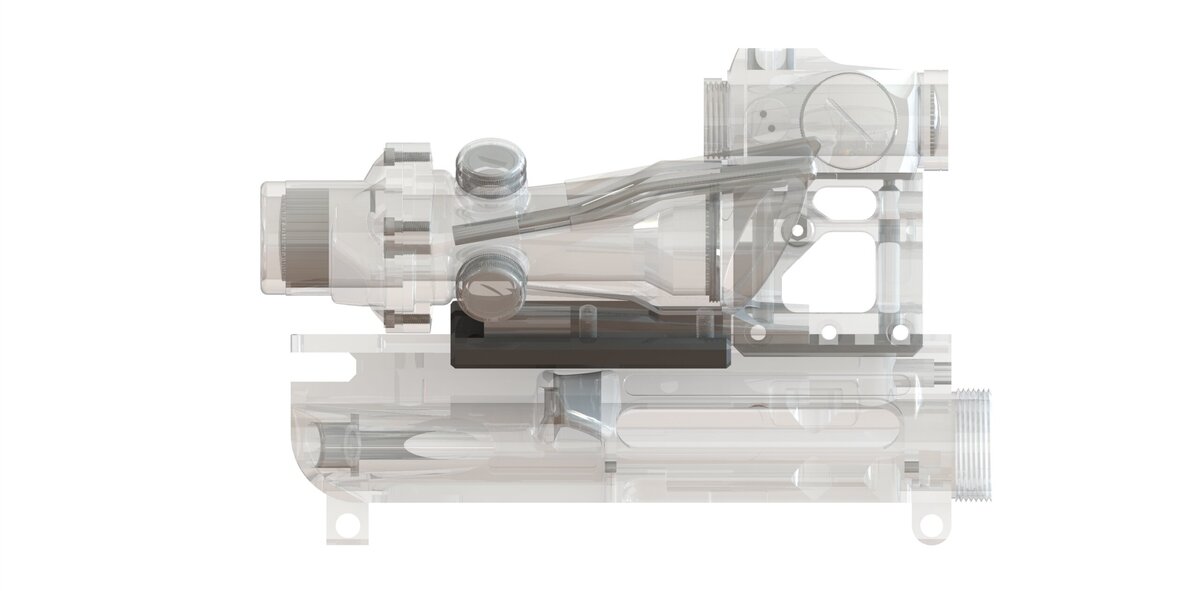

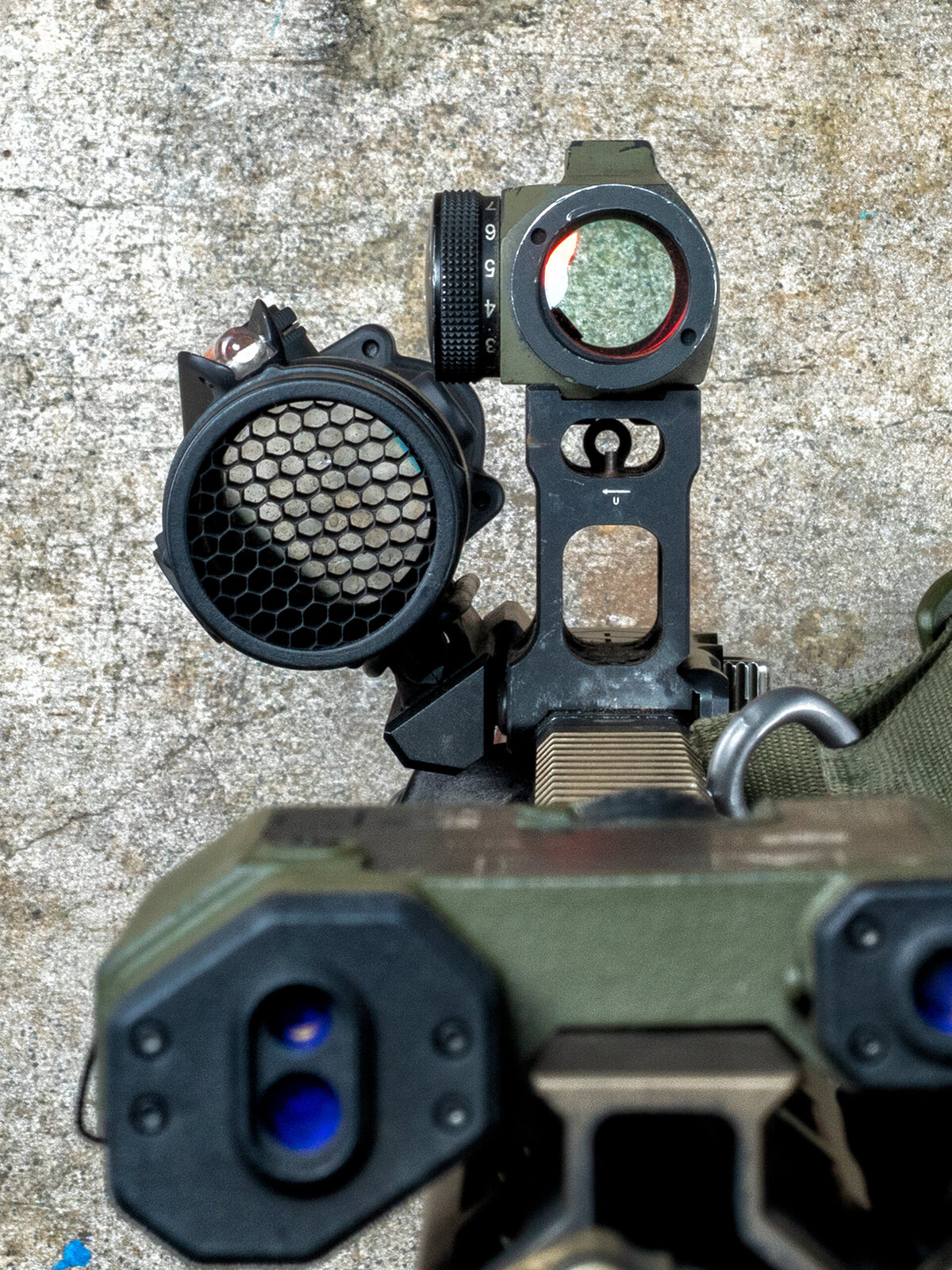

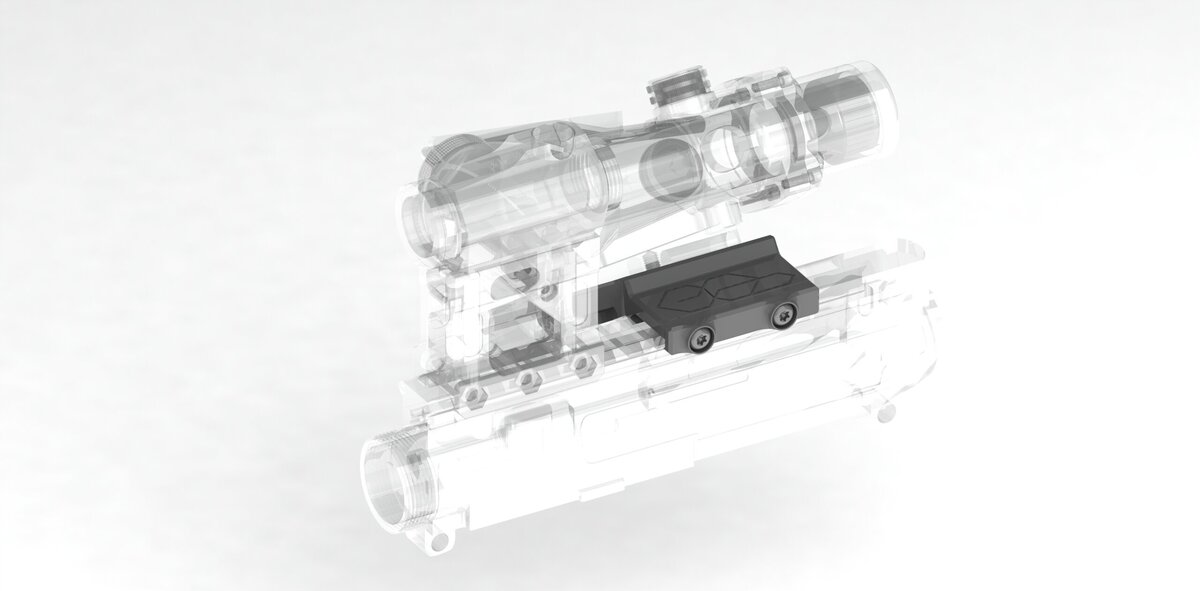

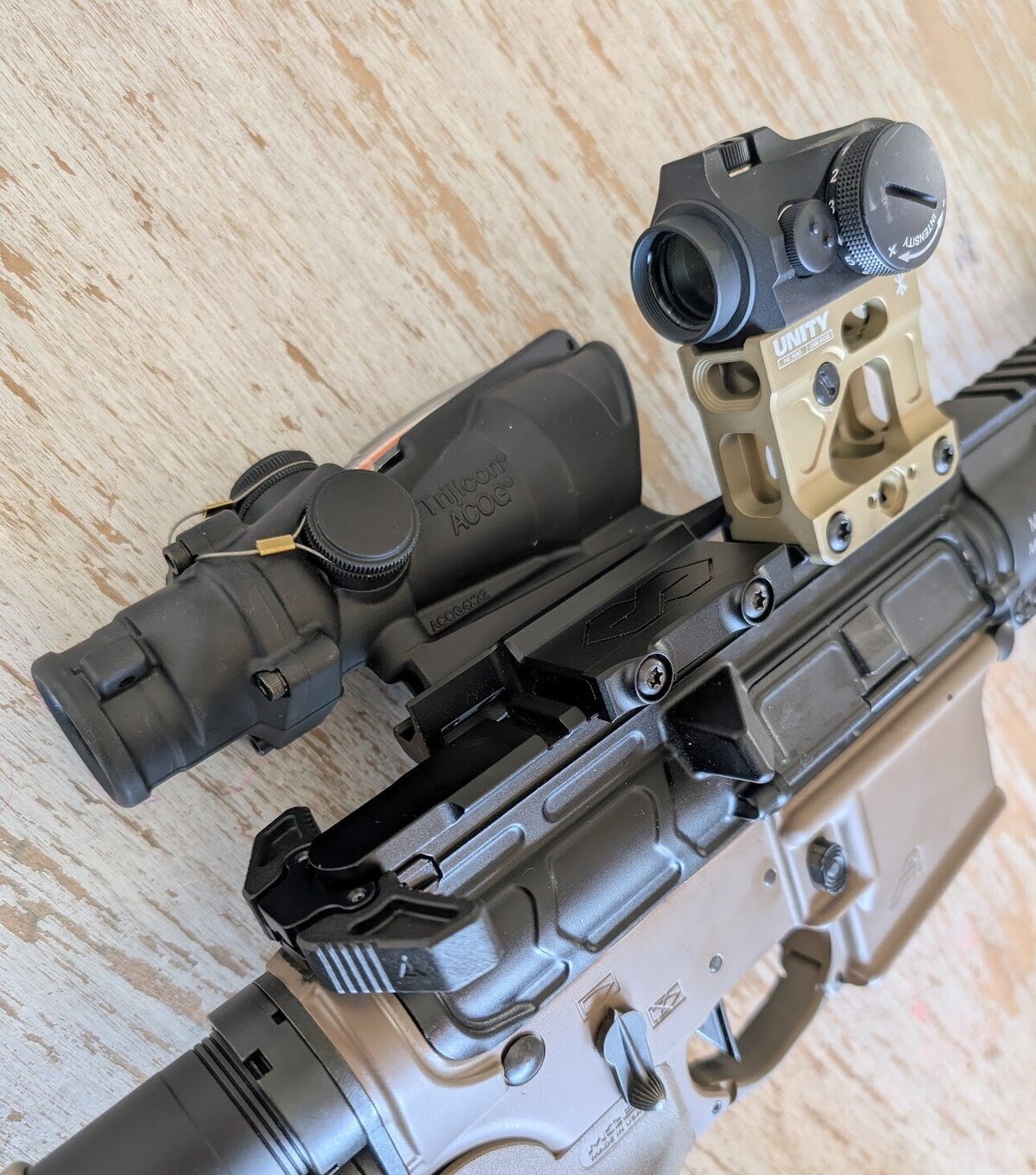

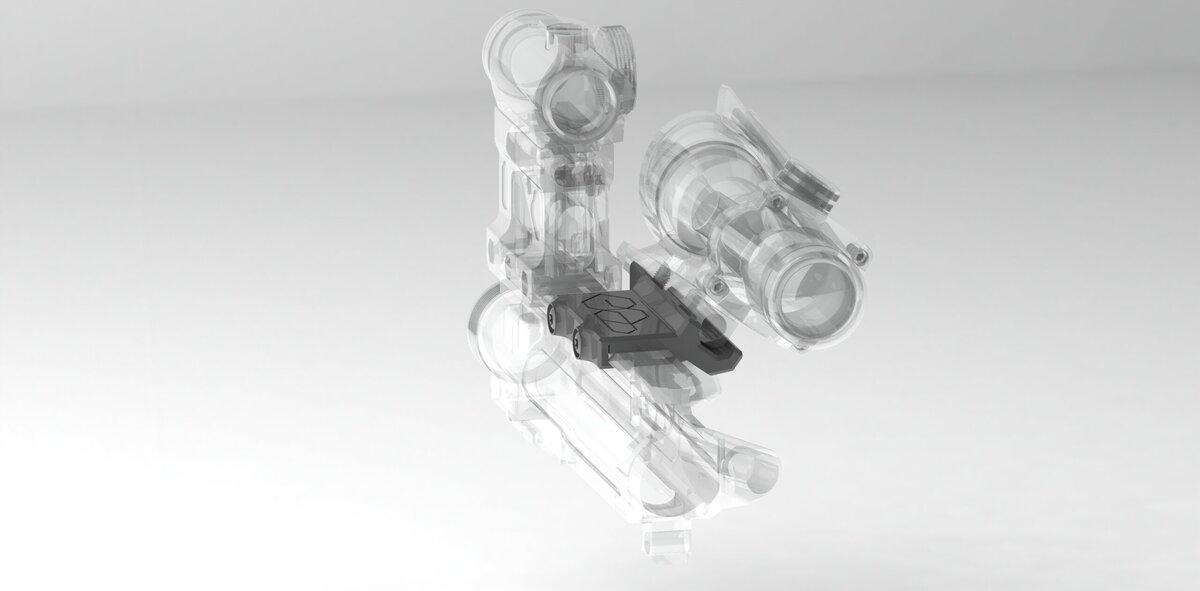

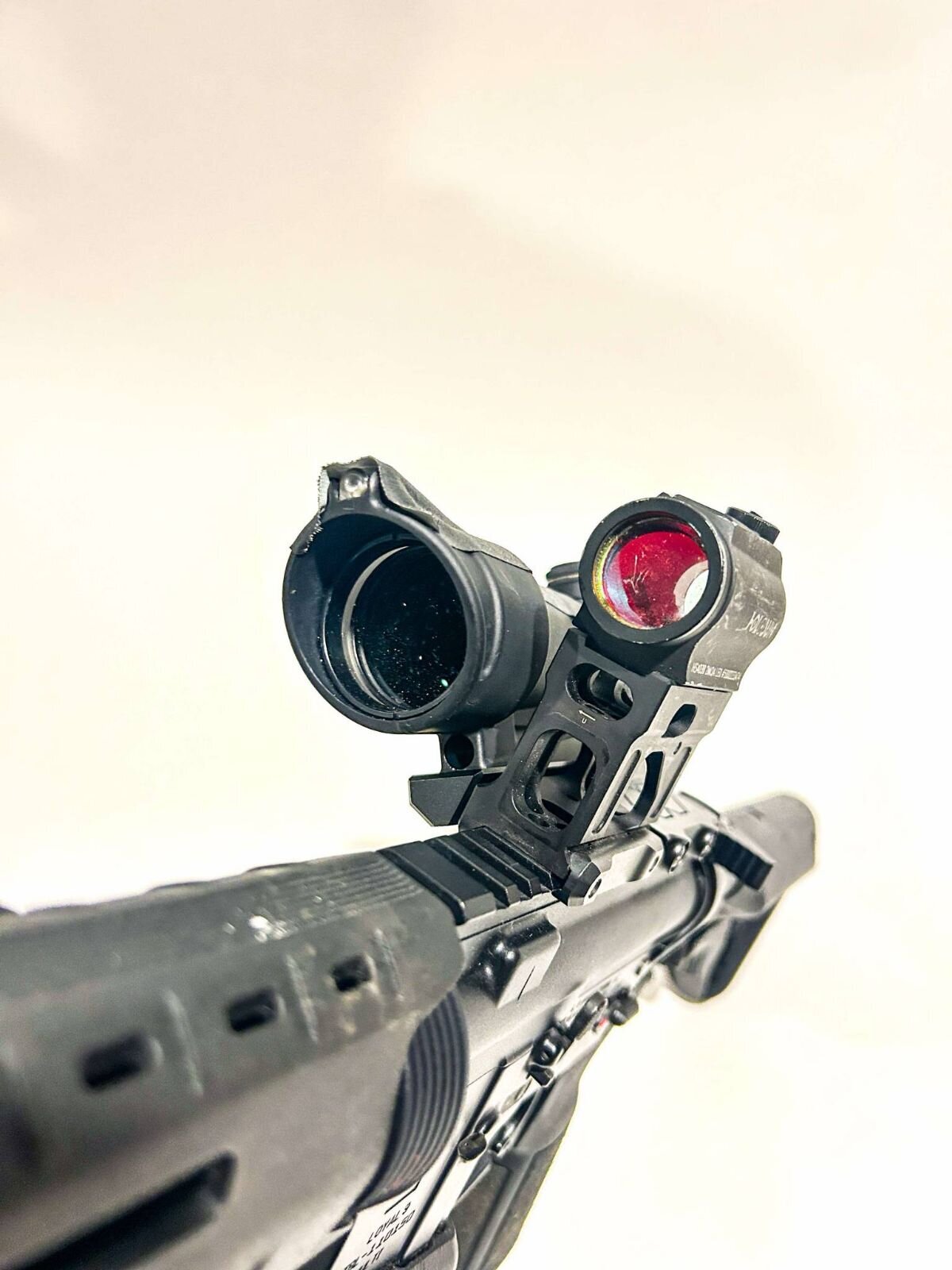

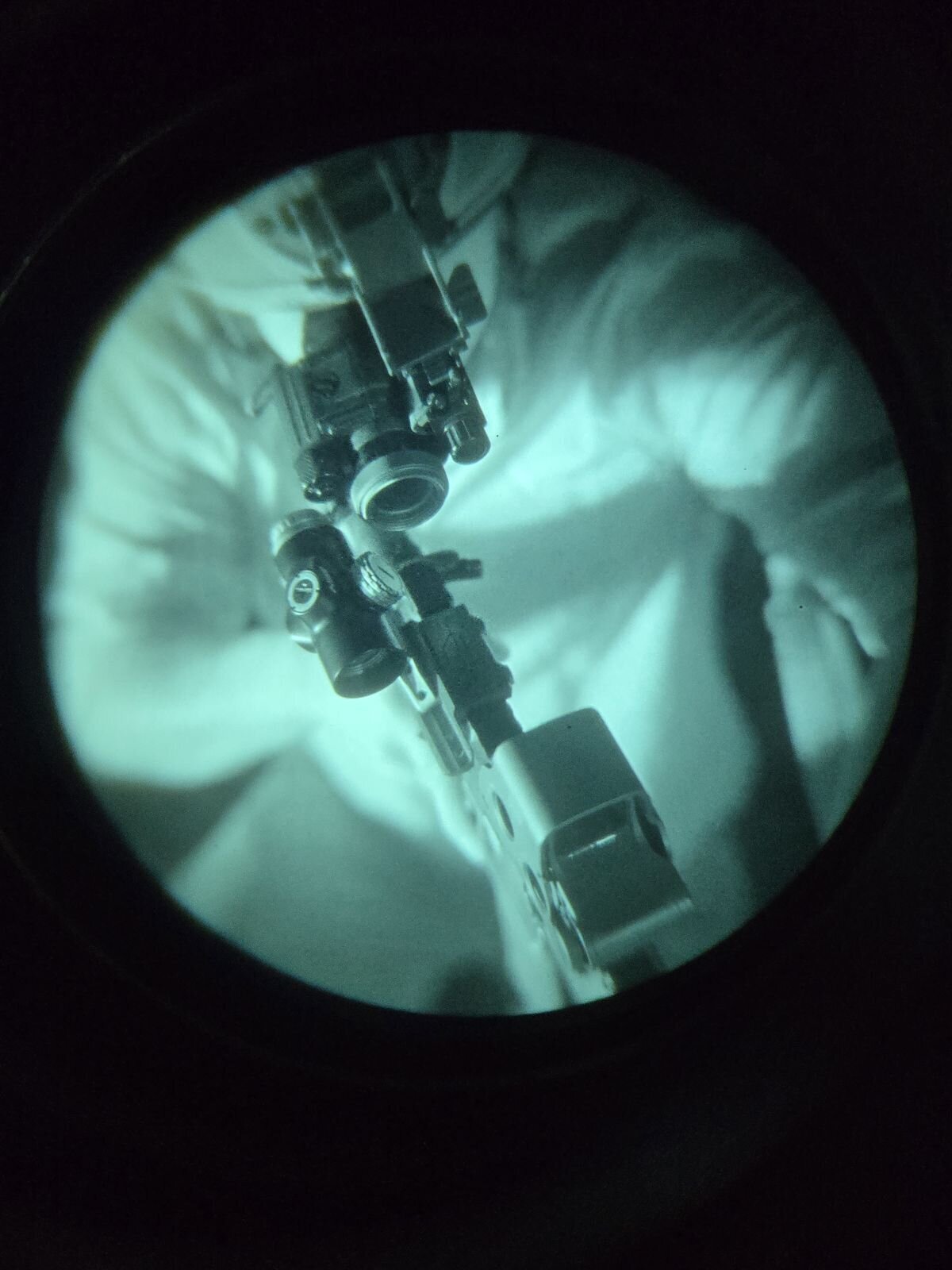

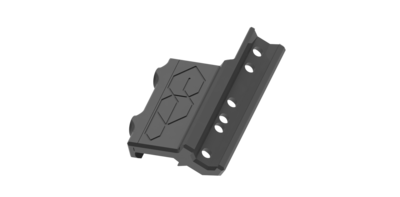

The SAM is an offset mount for a Trijicon ACOG, compact ACOG or Primary Arms Prism/Micro Prism which positions it at a 36 degree angle to be used in conjunction with Aimpoint T2 (or similar red dot) + riser mounted on top rail. This allows for the quickest, seamless transition from 1x to magnified without having to flip up a magnifier or move your head up/down. The side mounted ACOG is optimal for night vision as it minimizes the clashing of nods on your weapon mounted optics vs an ACOG + vertically mounted red dot or T2 + flip-to-center magnifier.
Features
LIMITED LIFETIME WARRANTY
DESIGNED AND MADE IN THE USA
PATENT PENDING
Features
- Allows for a night vision compatible general purpose rifle with magnification for the best of both worlds
- Aligns reticle directly above bore axis for normal BDC use
- Lower 1/3 co-witness with ACOG

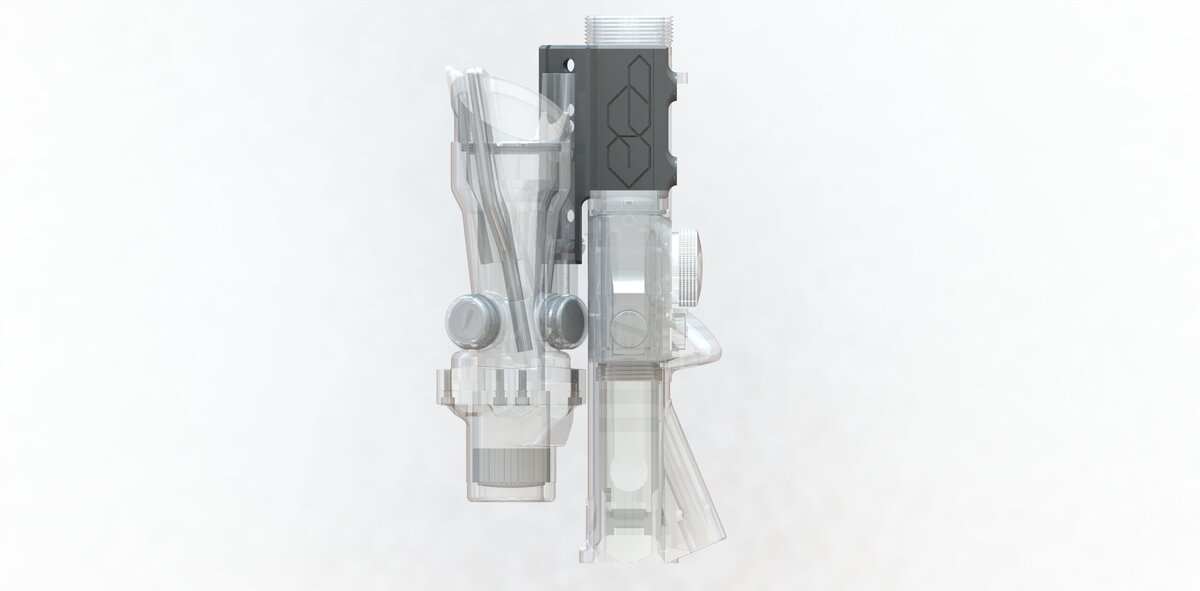

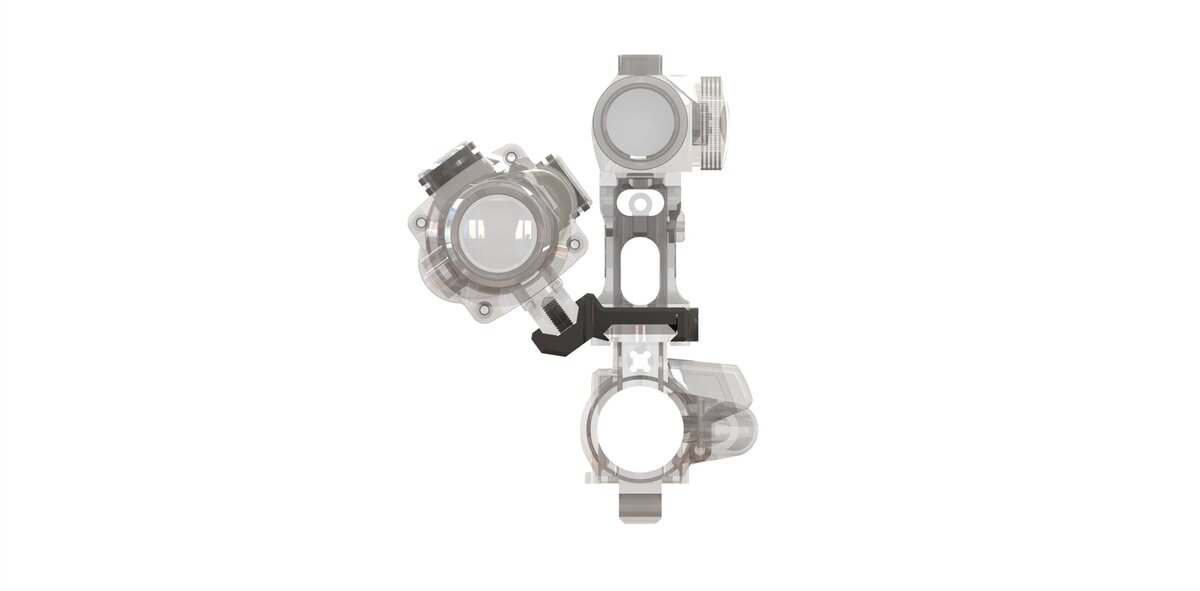

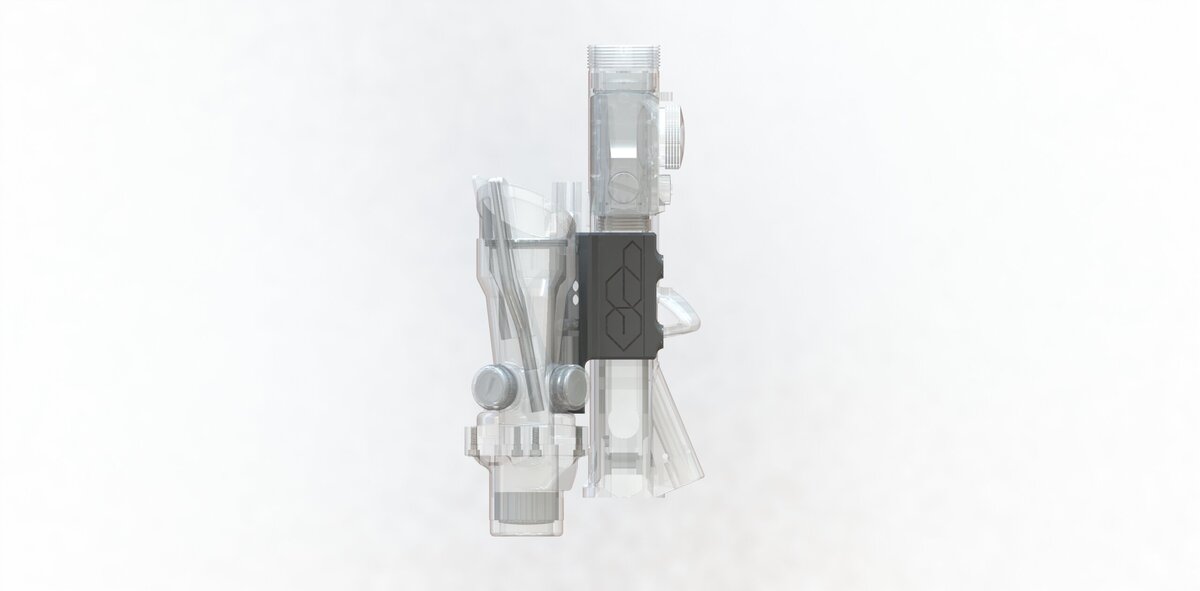

- Right and left hand compatible
- 3 ACOG mounting positions
- Dual recoil lug design
- 7075-T6 Aluminum
- Mil-spec Type III Hard Black Anodize
- 1.9 oz
LIMITED LIFETIME WARRANTY
DESIGNED AND MADE IN THE USA
PATENT PENDING
Notes:
- We are still finding new optics combinations that work so feel free to email us at info@stakerprecision.com with specific optic compatibility questions and we can try them out.
- Recommended Red Dot Risers: Most any red dot riser <1.31" in width at the base should work.
- Recommended T2 Riser Models: Unity fast micro 2.26 mount [newer models without reinforced qd hump], Kastle Group MICRO-226™ Optic Mount or similar. Scalarworks is compatible but requires the SAM to be mounted a couple notches further away.
- May work with T2 similar optics excluding low mounted AAA Batteries for RH configuration

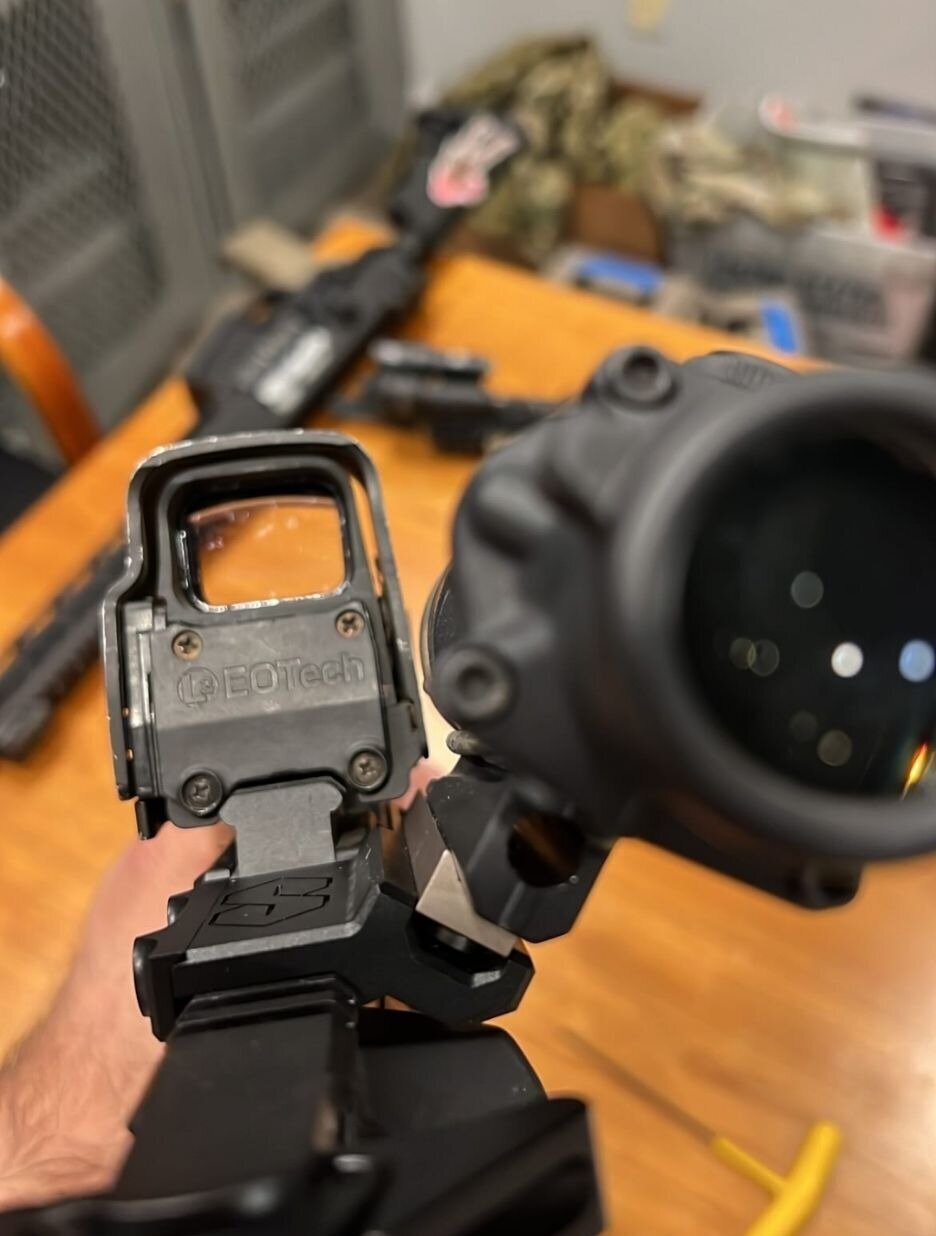

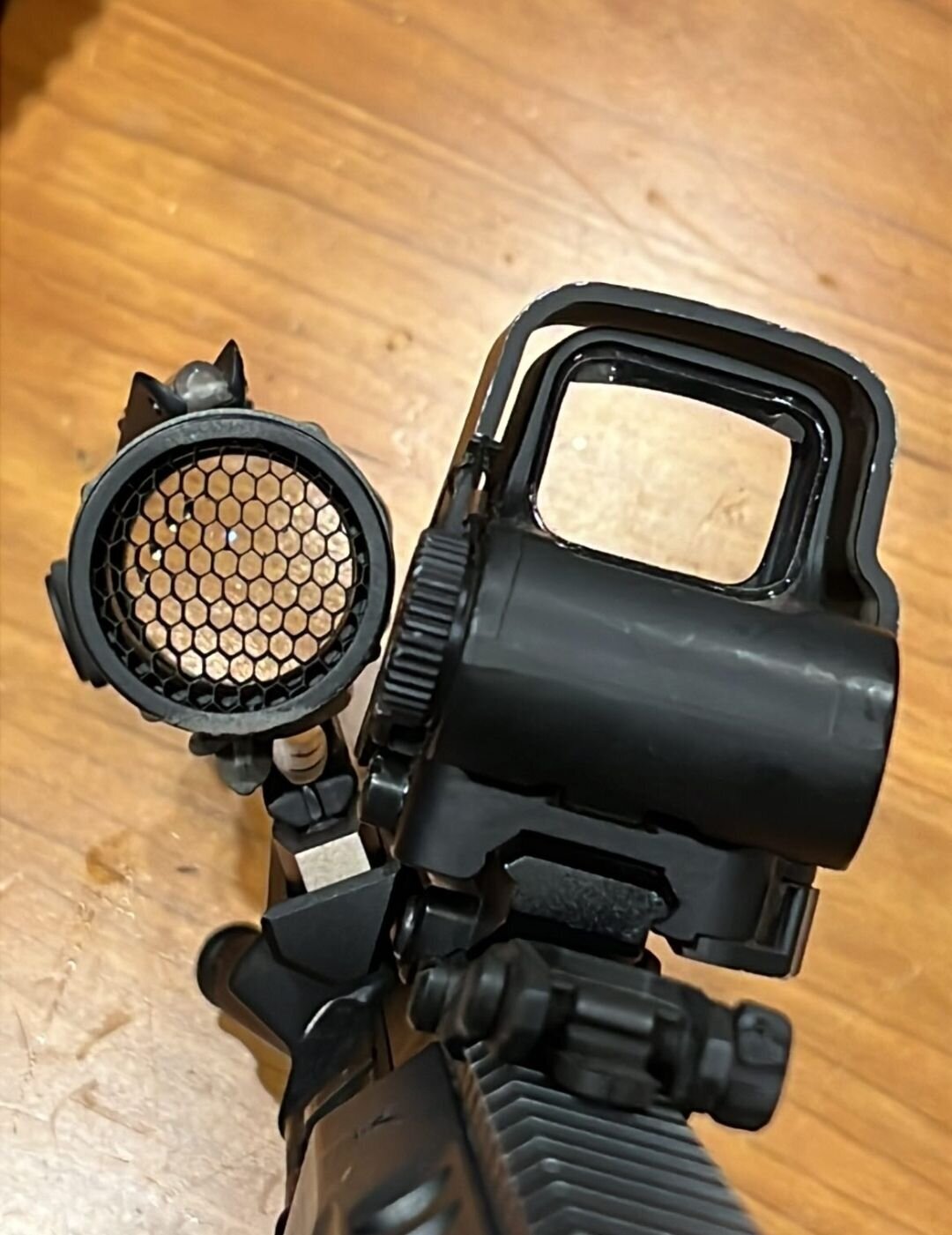

- Compatible with Eotech Holos and Comp M5 if used with KRAM 9.0
- May not work in some configurations with LED version of ACOG due to battery compartment width
$142.69
